技术参数
★ 数码信号类型:DMX512,以及采用RS—485接口传输的数码信号
★ 1路信号输入,1路直通信号输出(信号输入与直通信号之间有经电气隔离)
★ 8(或4)路经电气隔离的信号分配输出
★ 接口类型:RS-485
★ 信号连接插座:输入XLR-3-M, 输出XLR-3-F
★ 输入对输出的电气隔离耐压:>AC300V
★ 供电电源:AC90V~240V, 50Hz / 60Hz ,15W
★ 尺寸: 484*45*140mm “19”1U
★ 重量:1.9kg
◆1 input and 4 outputs DMX signal
◆In-out signal transmission completely isolated with photoelectric isolation
◆Interface: RS-485
◆Signal connection socket: XLR-3-M(input),XLR-3-F( output)
◆Power supply: AC90V~240V, 50Hz / 60Hz , 15W .

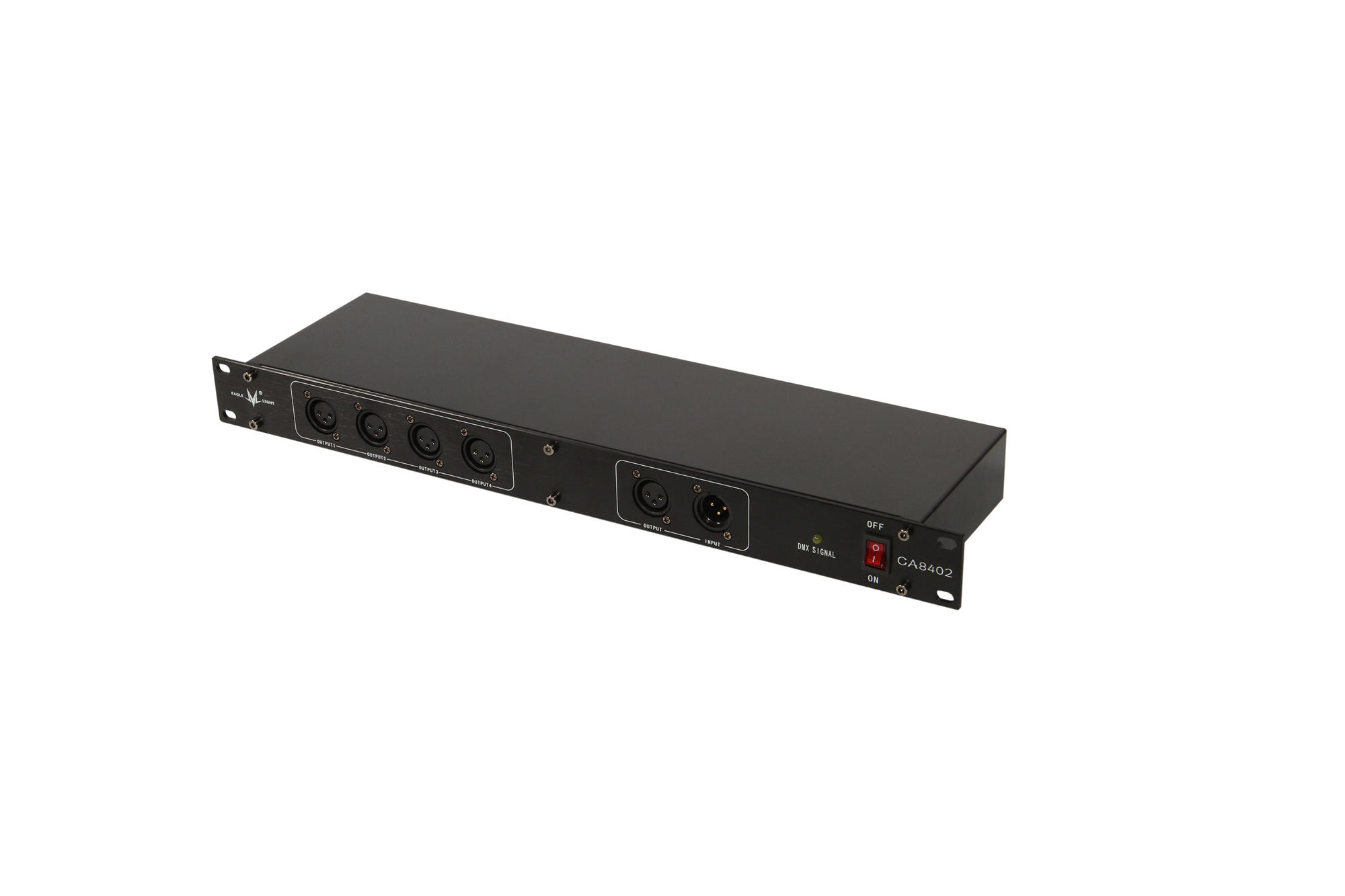

DMX-8(或DMX-4)数码信号分配放大器专用于对DMX512数码灯光控制信号进行整形放大和8(或4)路分配输出,各输入接口采用高压隔离技术,适用于DMX512信号经距离传输衰减后的整形放大处理,以及各分配输出接口之间、输入接口与各分配输出接口之间需要完全的电气隔离的使用场合。由于各个接口之间互相独立隔离,因此可以避免因控制线路、电脑灯、硅箱等问题而烧毁精密的数码灯光控制台,确保数码灯光控制台的安全运行,同时也保证 DMX信号能正常传送至各种灯光设备,从而提高整个数码灯光控制系统的可靠性。
DMX-8 or DMX-4 signal splitter is specialize in distributing and amplifying the DMX512 signal to output in 4ways and 8ways.Adopting high voltage isolation technology in each input port ,it’s suitable for amplifying the DMX512 signal after the long distance transmission and where need complete electrical isolation between in-output interface with output interface .Due to between the input and the output are completely isolated, so it can avoid burning the precision digital DMX controllers from the control cable broken in the lighting equipment and dimmer pack to ensure the safely running. At the same time, it also can be sure that there is the enough strong signal transmitted to every lighting equipment so that advanced the reliability of the whole lighting controlling system.
