1)对国际标准DMX512信号实现实时传输;
2)IP65防护等级,防雨淋结构设计,可悬挂安装在户外使用;
3)供电AC220V/50Hz或AC110V/60Hz,可通过电源选择开关进行切换;
4)能将输入的DMX512信号分配成8路输出,对输出信号进行整形放大处理;
5)每路输出使用一组独立的供电电源(采用变压器供电),和独立的光电隔离器进行隔离,以上措施有效就增强了产品的抗干扰能力,避免了各端口之间电路的相互影响;
6)每个外部接口都增加了保护电路;
7)安装结构: 采用标准19寸2U机柜结构,可实现多种安装方式,方便快捷;
8)尺寸: 48*11.7*8.6cm ,重量: 2.8kg
8)尺寸: 48*11.7*8.6cm ,重量: 2.8kg

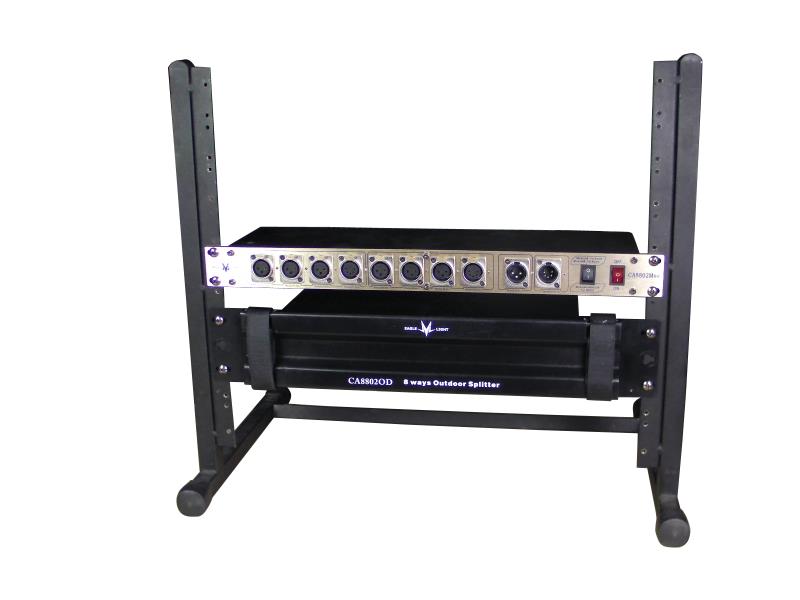

1) Realizing the transmission of DMX512 signal
2) It can hung on truss outdoor with waterproof structure design and IP65 waterproof level
3) Can through electricity switch to change the power supply AC220V/50Hz or AC110V/60Hz
4) It can distribute input DMX512 signal into 8 ways output and amplify the output signal
5) Every input and output all has independent power supply(Adopt transformer to supply electricity)with isolator in input and output signal to strength anti-jamming ability effectly and avoid the inference of each port
6) Add protect circuit to every external interface
7) Installation: Standard cabinet: 19 inches 2U. It can achieve several methods of installation,fast ad convenient.
8) Size: 48*11.7*8.6cm Weight: 2.8kg
