Adopt international standard DMX 512 protocol, it can strenghen, reshape and amplify the DMX signal received, and split it into 4 DMX outputs, so that your controller can control more lighting
fixtures
1 DMX inputs, 4 DMX outputs

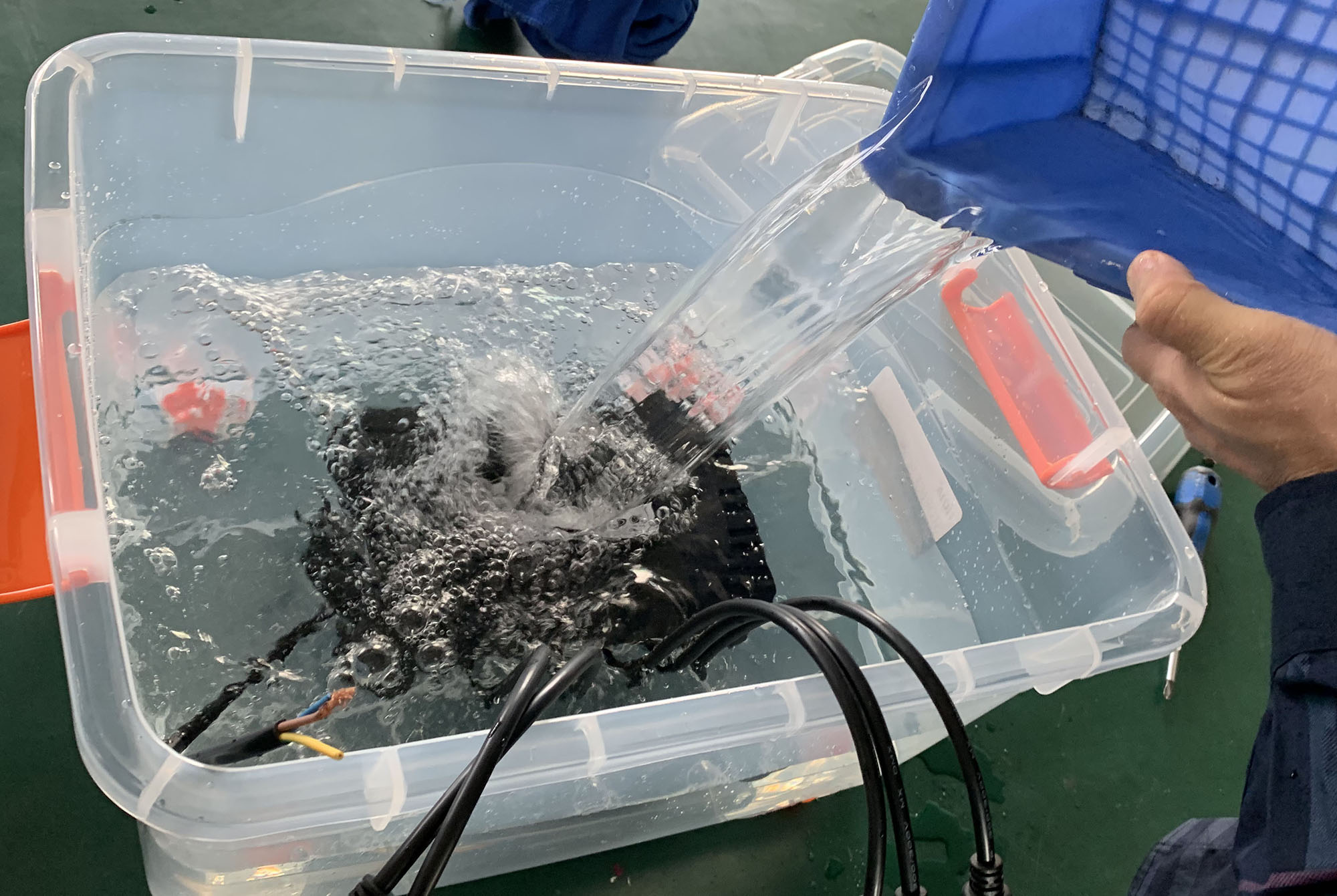

Water-proof design with unique water-leaking wholes, In case water came in, it will quickly flow outwards without damaging your device
Aluminum die-cast housing for excellent outlook and better heat dissipation, as well as better water-proof structure. All power cable, DMX input and output signal cables can be with water-proof connectors, DMX signal cables it use are professional shielded wires
Optoelectric Isolation Voltage-resistant of Input to Output: >AC 300 V
Water-proof rate: IP 66, can be used inside water
A clamp can be attached directly so it can be hung up to the truss system
Independent power supply for the input and outputs, and Complete Optoelectric Isolation between the input and outputs, so it can protect your precise and previous DMX controller from any possible high-current or high voltage electricity caused by failure from the DMX lighting fixtures, or any other devices in the entire system. It can also protect the DMX data from external interfenrence signal, ensures enough signal strength will be distributed to each DMX output, so that the entire control system is safe and reliable
Maximum lighting fixtures in link of one DMX output is 32 pcs. More than that, use another piece of CA8402A
Voltage: AC 90 - 240V / 50 - 60 Hz
Rated power consumption: 6W
Dimension: 220x140x65mm
N. W.: 1.54 kgs
Carton size: 315x195x105mm
G.W.: 2.1 kgs
