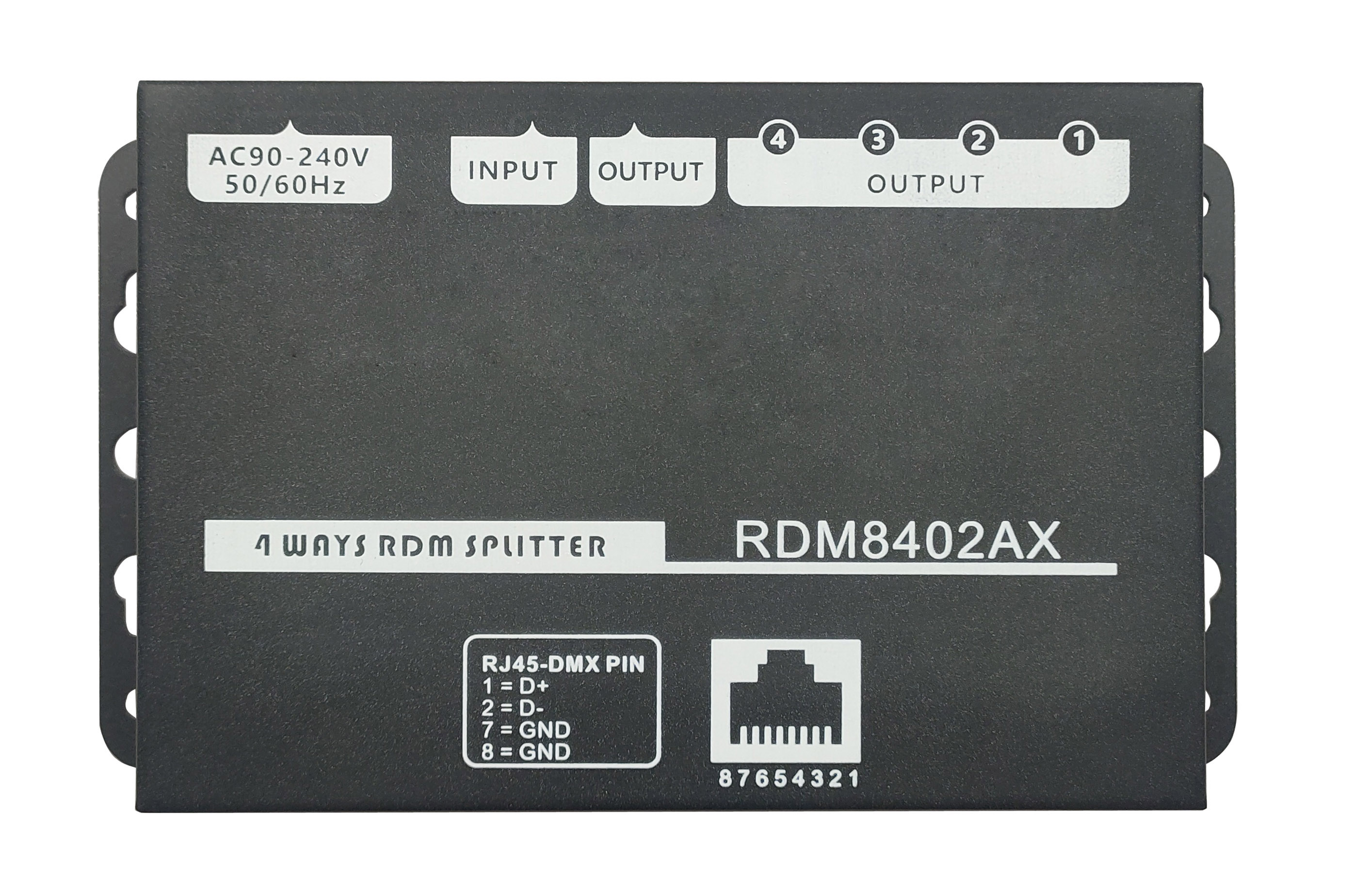

★ Digital signal type: using the internationally recognized DMX512-RDM bidirectional communication protocol, as well as digital signals transmitted through RJ45 terminal interfaces; It allows your console device to easily and seamlessly read and set lighting
parameters from a distance (such as setting lighting addresses, reading lighting library parameters, searching for lighting fixtures, etc.), and also enables your console device to drive more lighting equipment;
★ 1 signal input, 1 direct signal output (with electrical isolation between signal input and direct signal), with signal input indicator light; 4 signal distribution outputs through electrical isolation, each with a signal indicator light;
Enhance the ability to connect devices to the data bus. Protect the DMX512 output interface of the lighting console, isolate the fault site, and improve the safe and reliable operation of the digital lighting control system.
★ Equipped with bidirectional DMX512-RDM protocol function, the lamp information can be fed back to lighting control consoles with RDM function such as the MA console.
★ Signal connection socket: Both input and output ports use RJ45 terminals
★ Input to output electrical isolation withstand voltage:>AC300V
★ Power supply: AC90V~240V, 50Hz/60Hz, 15W;
★ Size: 25 × 12.3 × 4.3 cm
Installation method: It can be fixed with screws or suspended with a light hook for installation.
-
